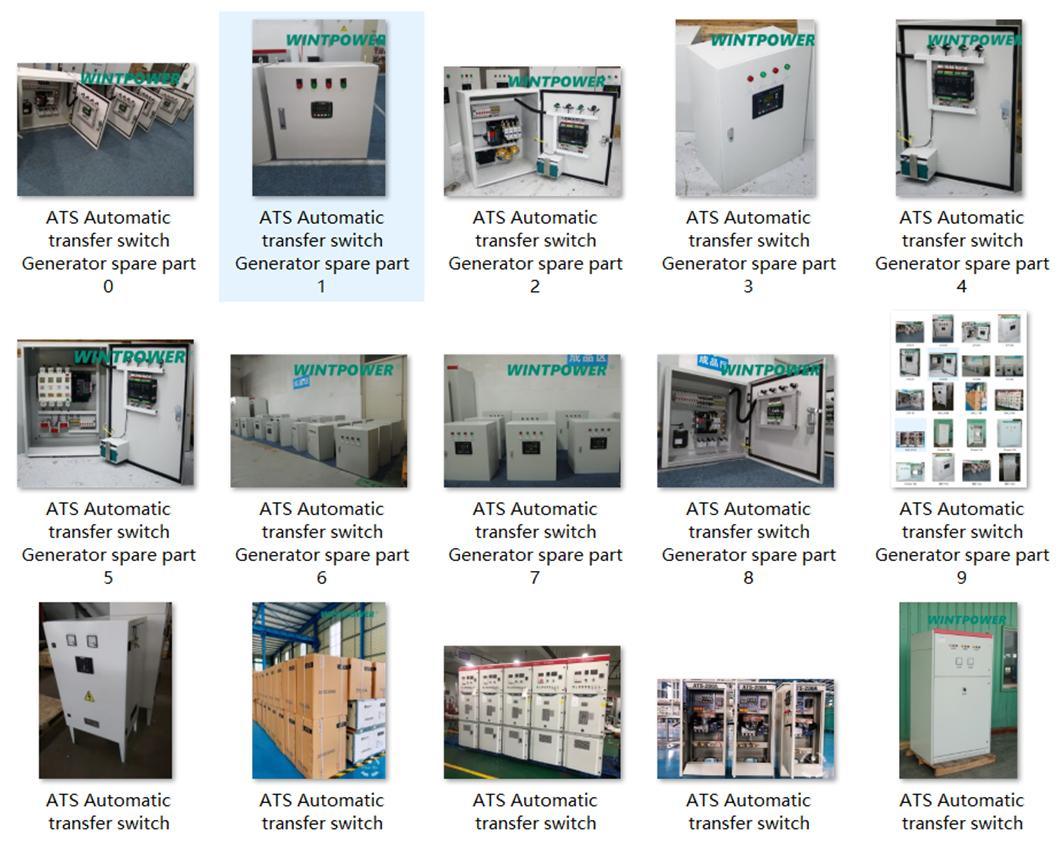

SUYANG ATS | |||||||
Item | MODEL | CIRCUIT | BRAND | TYPE | COPPER BUSBAR | Cabinet type | ATS Box Dimension (mm) |
1 | WT63A/4P | 20-63A | Suyang | C | N/A | SYK1-63A/4P | 450*350*600 |
2 | WT80A/4P | 80A | Suyang | C | N/A | SYK1-80A/4P | 450*350*600 |
3 | WT100A/4P | 100A | Suyang | C | N/A | SYK1-100A/4P | 450*350*600 |
4 | WT125A/4P | 125A | Suyang | C | N/A | SYK1-125A/4P | 450*350*600 |
5 | WT160A/4P | 160A | Suyang | C | N/A | SYK1-160A/4P | 450*350*600 |
6 | WT250A/4P | 250A | Suyang | C | N/A | SYK1-250A/4P | 500*350*600 |
7 | WT400A/4P | 400A | Suyang | C | N/A | SYK1-400A/4P | 500*350*600 |
8 | WT630A/4P | 630A | Suyang | C | N/A | SYK1-630A/4P | 800*600*2200 |
9 | WT800A/4P | 800A | Suyang | GGD | Y | SYK1-800A/4P | 800*600*2200 |
10 | WT1000A/4P | 1000A | Suyang | GGD | Y | SYK1-1000A/4P | 800*600*2200 |
11 | WT1250A/4P | 1250A | Suyang | GGD | Y | SYK1-1250A/4P | 800*600*2200 |
12 | WT1600A/4P | 1600A | Suyang | GGD | Y | SYK1-1600A/4P | 800*600*2200 |
13 | WT2000A/4P | 2000A | Suyang | GGD | Y | SYK1-2000A/4P | 800*600*2200 |
14 | WT2500A/4P | 2500A | Suyang | GGD | Y | SYK1-2500A/4P | 800*600*2200 |
15 | WT3200A/4P | 3200A | Suyang | GGD | Y | SYK1-3200A/4P | 800*600*2200 |
16 | WT4000A/4P | 4000A | Suyang | GGD | Y | SYK1-4000A/4P | 1000*1000*2200 |
Note: | |||||||
1. ATS cabinets below 250A include 600*500*300 cabinets×1; three indicator lights for mains (green), power generation (red), and load (yellow); 3 meters long ATS cable with aviation socket; one door lock; Several terminal blocks and fuse holders, fuses, etc. | |||||||
2. 400A, 630A ATS cabinets include 700*600*350 cabinets×1; three indicator lights for mains (green), power generation (red), and load (yellow); 3 meters long ATS cable with aviation socket; one door lock ; Several terminal blocks and fuse holders, fuses, etc. | |||||||
3. ATS cabinet of 800A and above includes IP42 standard GGD cabinet×1; three indicator lights for mains (green), power generation (red), and load (yellow), voltmeter×1, voltage conversion switch×1, ammeter×1 Current transformer×3, current conversion switch×1; 3 meters long ATS connection line with aviation socket; one door lock; several wiring terminal blocks, fuse holders, and fuses; copper bars | |||||||
4. This type of staff is quoted at 230/400V conventional voltage. ATS switch for units with three-phase voltage less than 220V or greater than 440V needs to be quoted separately |
FAQ1.What’s your power range of Generators?Answer:We can offer the range from 5kva~3000kva.2.What’s your delivery time?Answer:Generally,we can delivery in 15-35days after confirmation of order.3.What’s your payment?Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipmentor L/C at sight.But based on some special project and special order,we can do somethingsupporton payment item.4.What’s your warranty?One year or 1000hours (accordingto whichever reach first) from Ex-Factory date5.What’s your MOQ?Answer:We accept power generator MOQ is 1set .WINTPOWER Service SystemCustomer-focused traditional service better and better service levels worldwide-network ServiceConcepts:Ensure that customers at ease using for WINTPOWERProducts Serving the customers, WINTPOWERgains trust .Work together with Customers During the service period, WINTPOWERdo best firstly and protects customers’interests.In case of failure to use the generator, WINTPOWERhelp customer untilthey know how to useWINTPOWER Service PrinciplesCustomer foremost and honesty as foundation. Serving the customers heart and soul at all levels 24 hours each day.ΔFactory Inspection: the test items before delivery are mainly as follows:1.Each gensetsshall be put into commission and loading more than 1hours totally. They are tested on idleload, testing range 25% 50% 75% 100% 110% 75% 50% 25% 0%2.The noise level is tested by requested3.All of the meters on the control panel shall be testedThe appearance of the genset and all of the label and nameplate shall be checked
